How to View Roof Face Characteristics

Aurora allows you to view key characteristics of a roof face (or multiple roof faces), including azimuth, pitch, area, number of modules, and percent area of modules.  This is key information to have at your fingertips as you design.

How to Use:

1. In Design view, click on the System tab

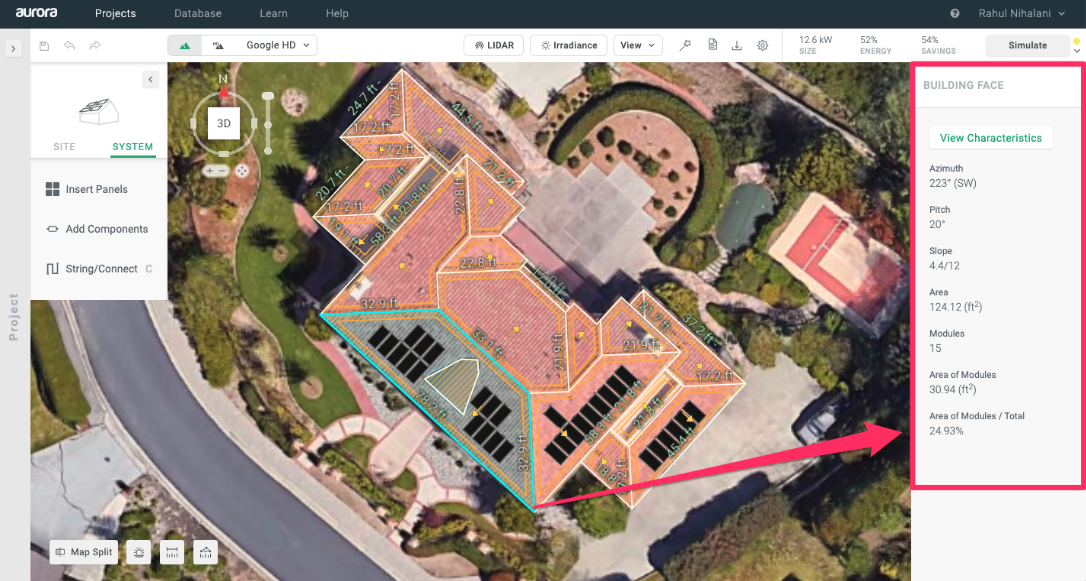

2.  Click on the roof face you wish to view:
3. You'll be able to see the following:
   1. Azimuth
   2. Pitch
   3. Slope
   4. Area of roof face
   5. Number of modules
   6. Area of modules
   7. Percentage of total roof surface occupied by modules (area of modules/total roof face area)

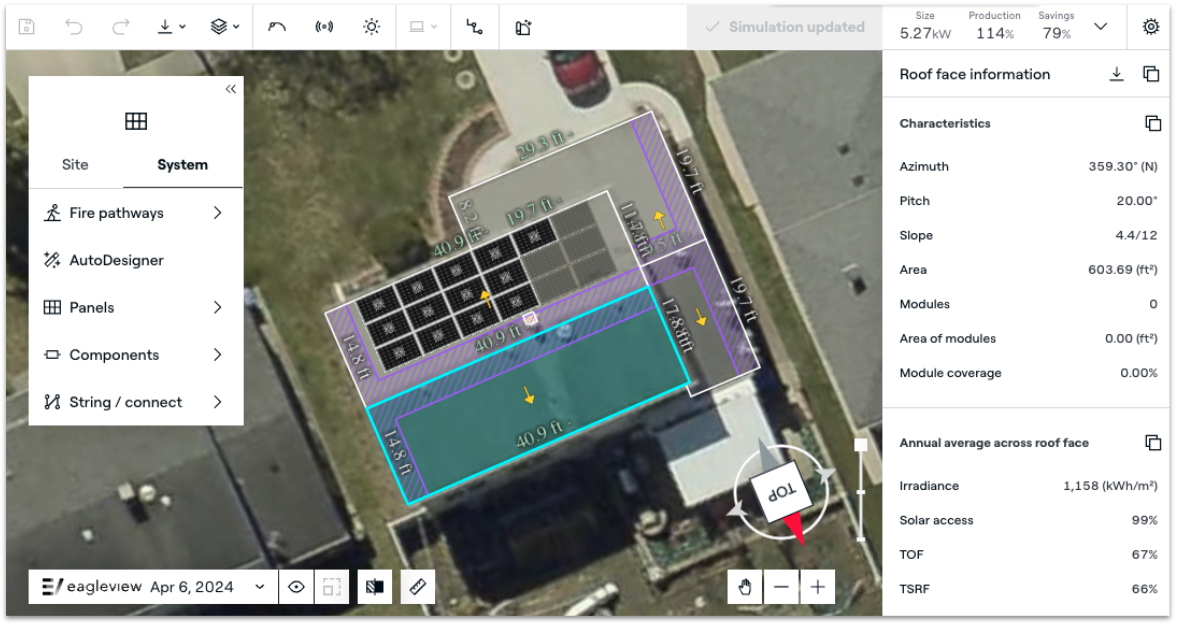

4. Additional roof characteristics can be viewed by clicking "View Characteristics":

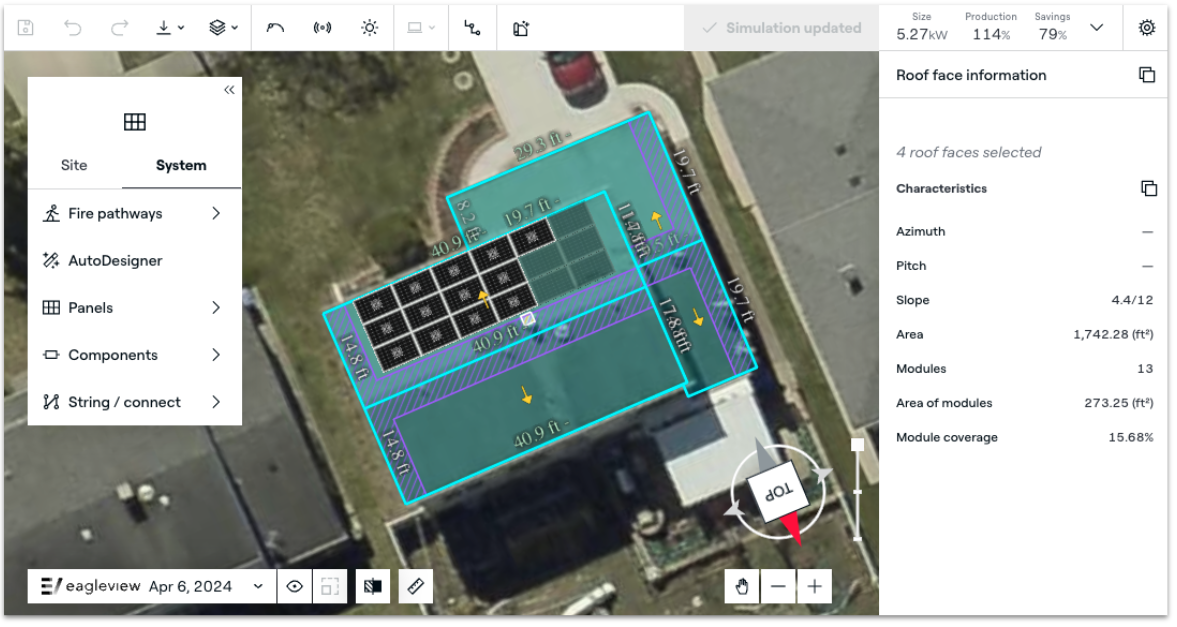

5. To view averaged characteristics of multiple roof faces, Shift+Click to view:
6. You'll be able to see the following:
   1. Combined area of the selected roof faces
   2. Number of modules on selected roof faces
   3. Area of modules on selected roof faces
   4. Percentage of total roof surface occupied by modules on selected roof faces (area of modules/total roof face area)
