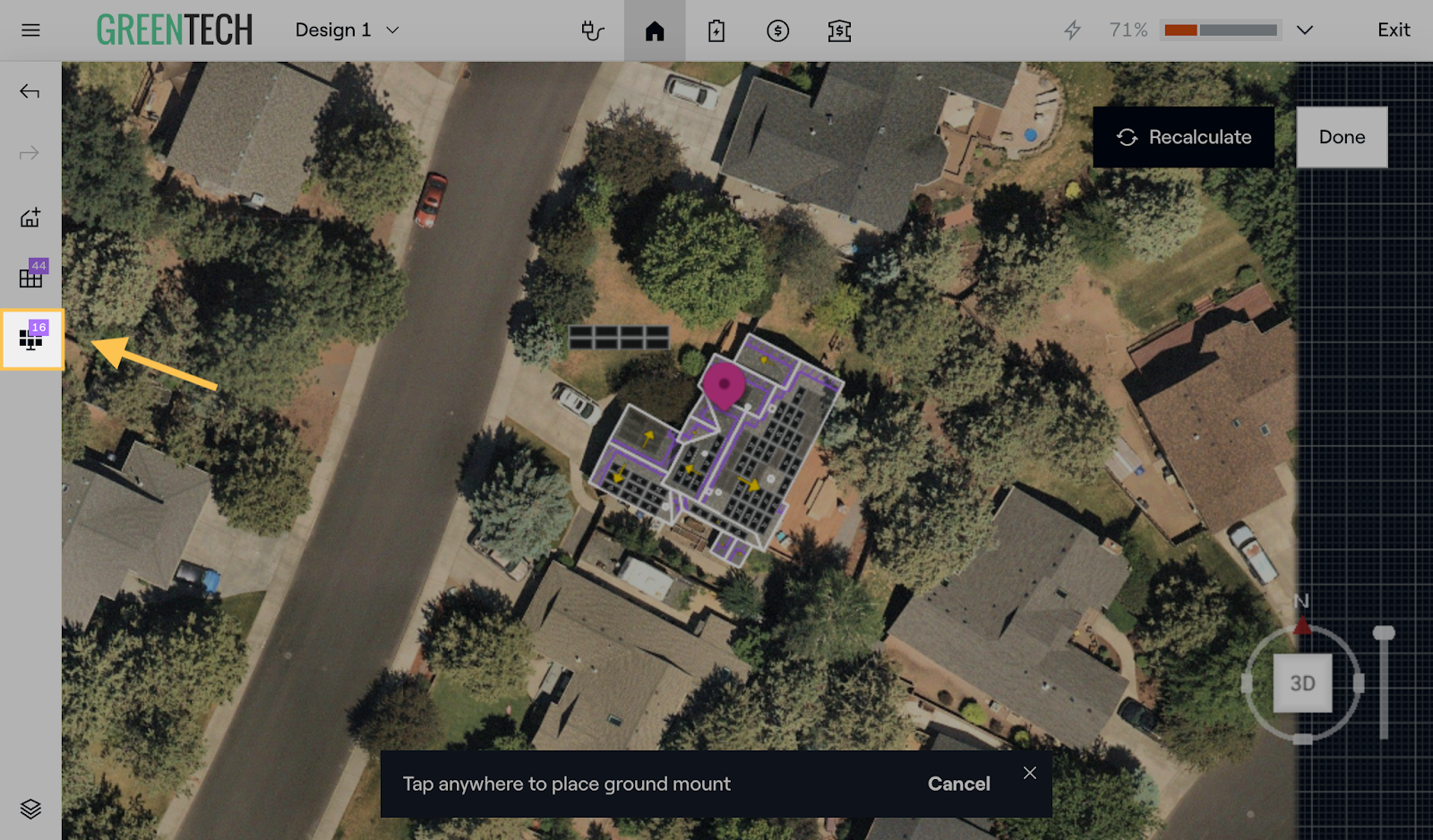

To add a ground mount in Sales Mode, click on the ground mount icon (six modules with a mount on the bottom) on the left-hand menu, then place it in the desired location on the site.

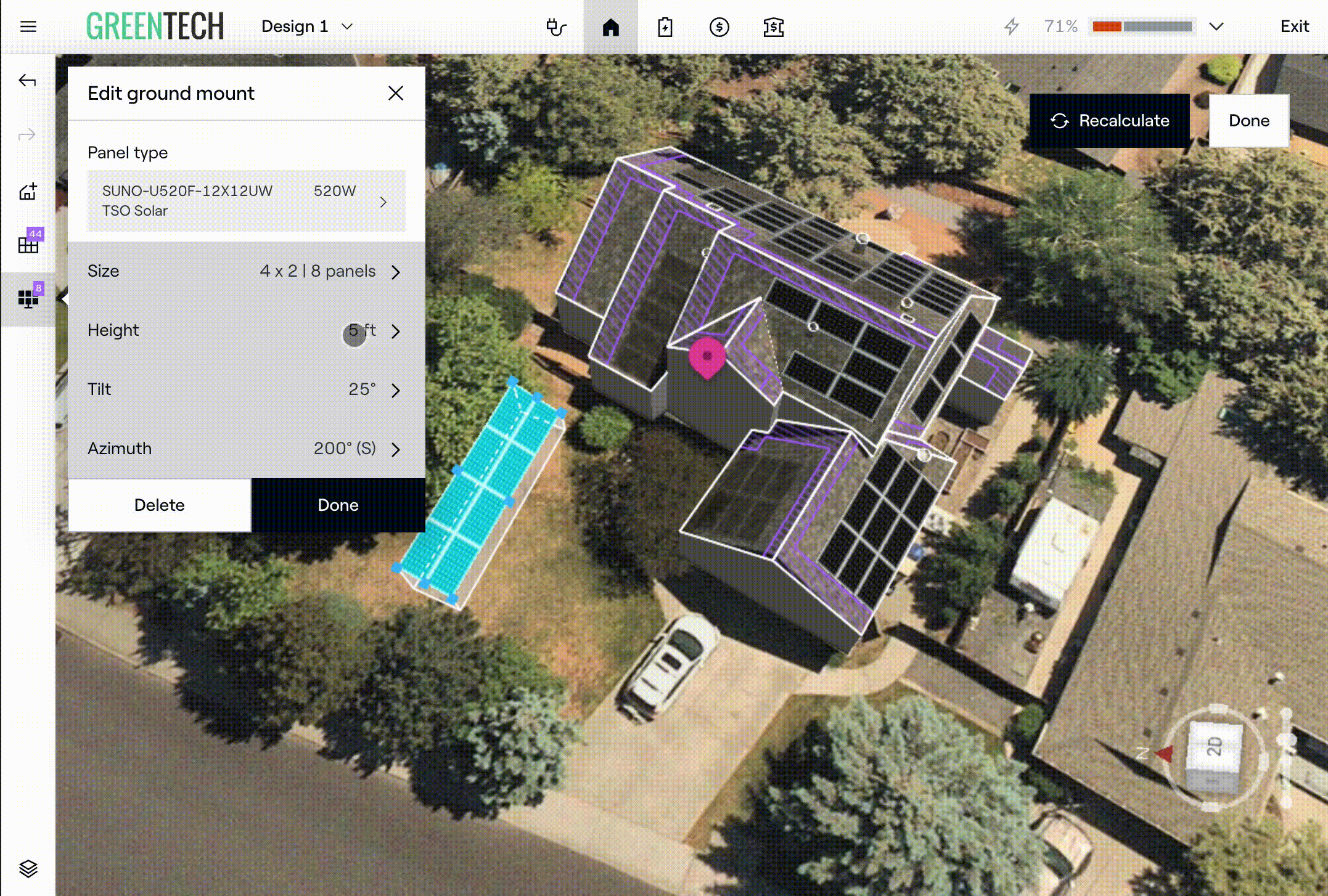

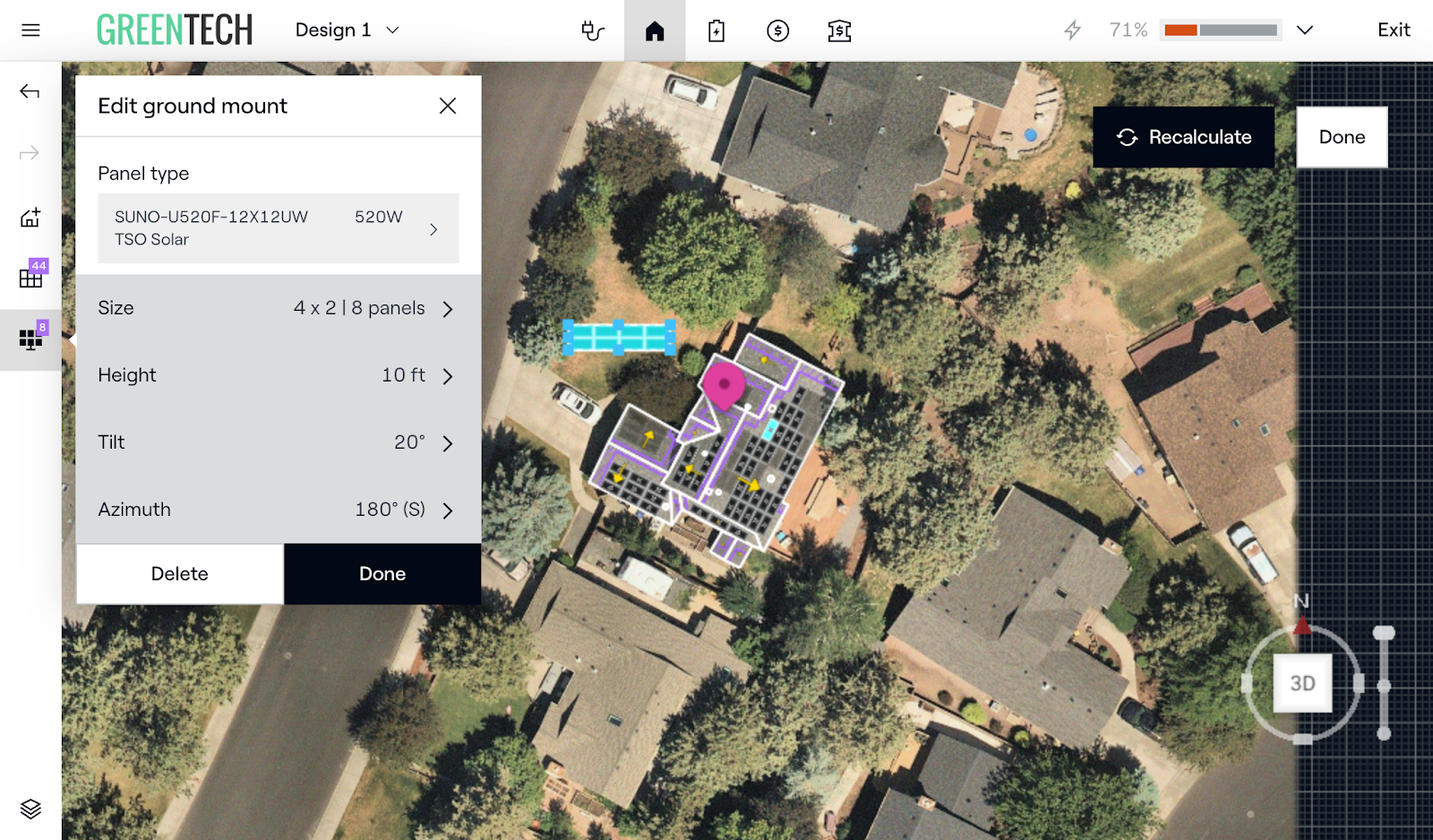

A new menu opens on the left side of the screen. Here you’ll select the Panel Type, Ground Mount Size, Height off of the ground, Tilt, & Azimuth.

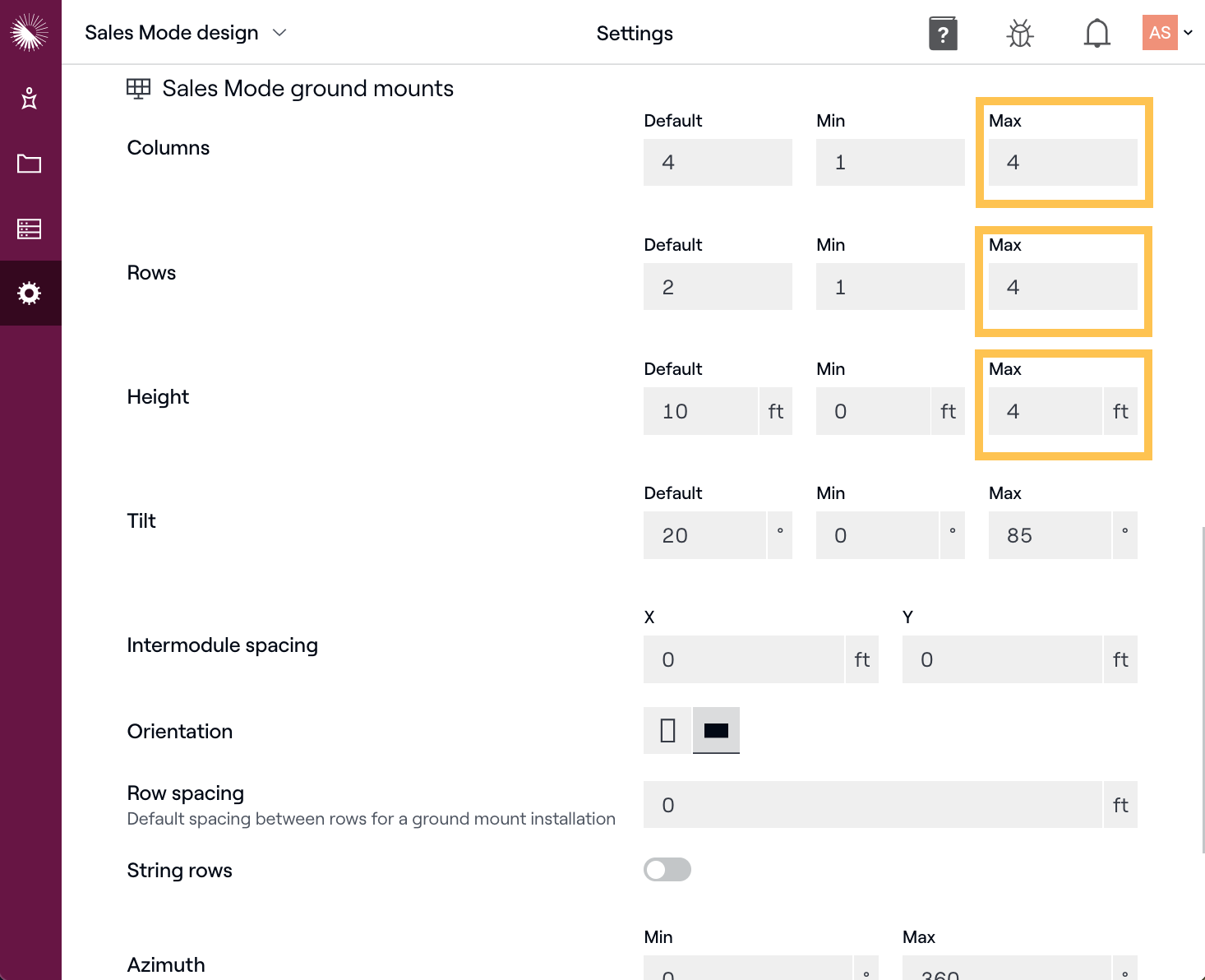

Note: Some of these adjustments are preset by the account admin. To adjust the default settings, admins can navigate to Settings > Sales Mode design.Scroll down to Ground Mount settings and increase the Column Limit Max, Height Limit Max, and Row Limit Max.
When you have adjusted these settings, head back to your project and finish selecting the parameters for your ground mount. You may reposition your ground mount by dragging it, and you can create another by tapping the ground mount icon on the left once again.
Finalizing the System Design

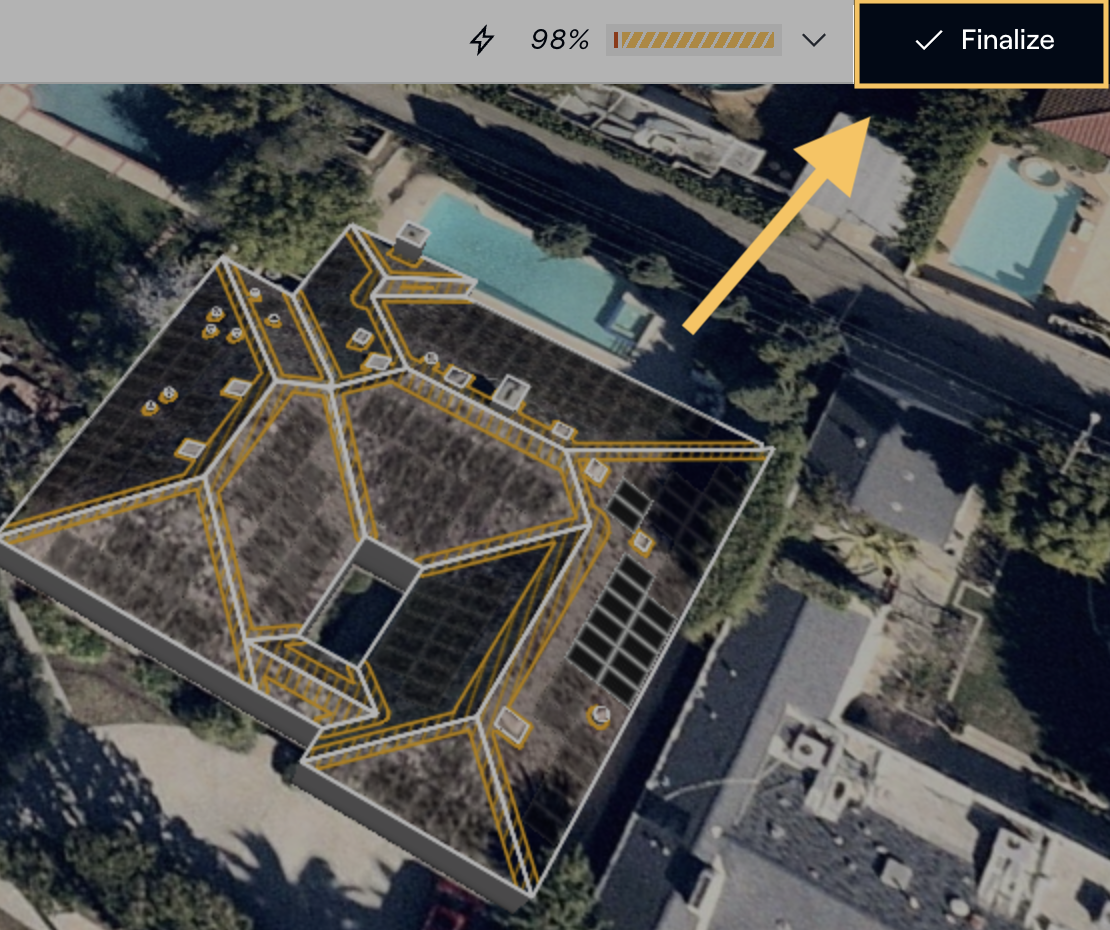

Users will need to click Finalize in order to run the final production simulation and move onto the next page.
If AutoStringer is enabled by the Admin, it will run automatically in the background using the default string inverters and DC optimizer (optional) set by the Admin.
Note: This uses the Aurora simulation which is more accurate than PVWatts – taking horizon shading and other factors into account. This final calculation should not be more than a few percentage points from the initial PVWatts estimate
