DXF files are compatible with various CAD software applications, including AutoCAD, allowing users to import these files for further editing and design work. See also: How to export DXF files

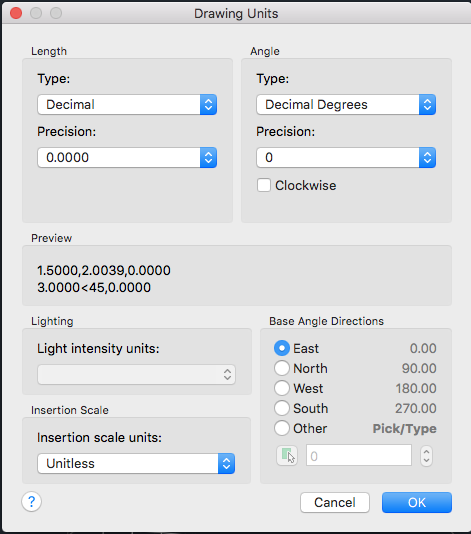

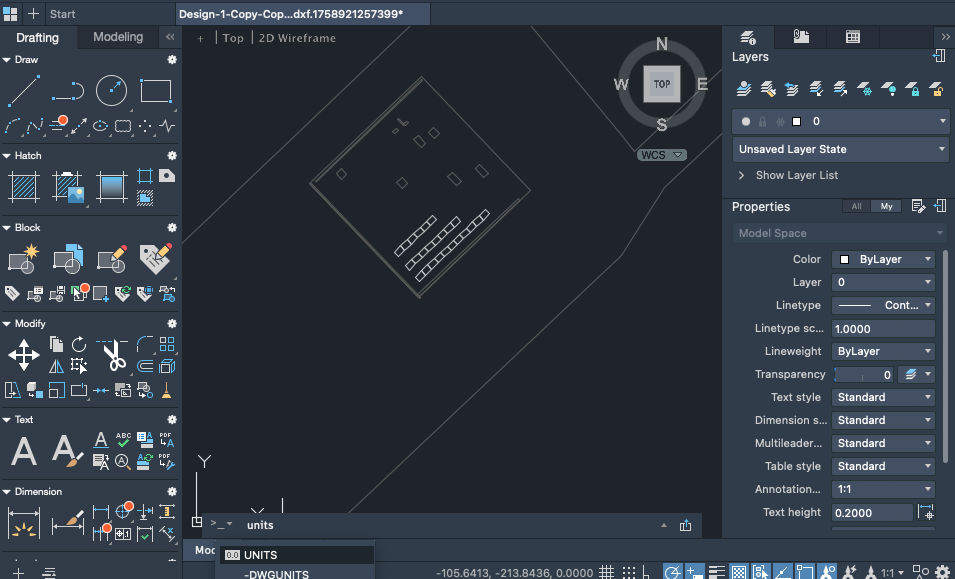

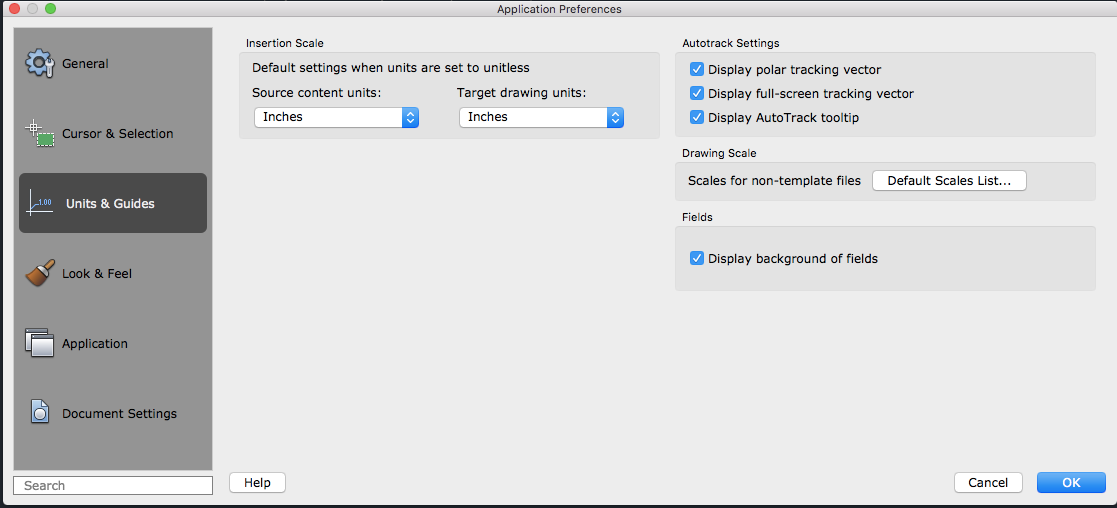

When working with imported DXF files, it is crucial to ensure that the drawing is set to the correct scale unit to maintain accuracy. To adjust the scale unit, you can type the command Units into the command line and then press the Enter key. This opens the Units dialog box to set measurement units for your drawing.

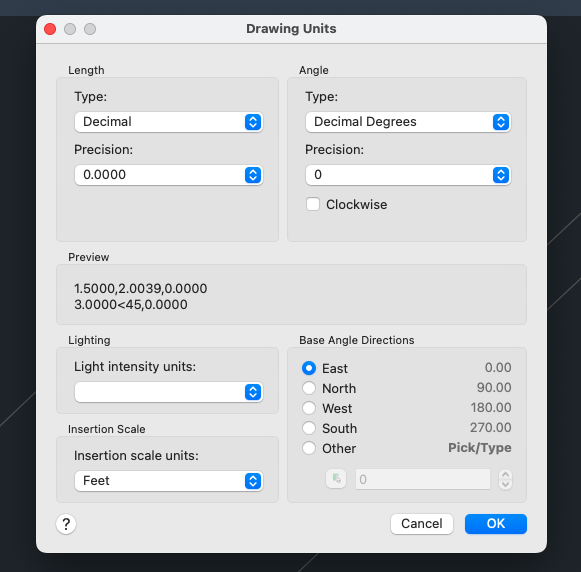

Within the Units dialog box, you have control over the unit of measurement used in your drawing. Choose Feet for Imperial or Meters for Metric measurements based on your project needs. This option ensures all dimensions and scaling match the required unit system.
To view and show the dimensions in your drawing, you can use the DIM and DIMSTYLE commands. The DIM command helps you add dimension annotations, and DIMSTYLE lets you adjust how those dimensions look, including text size, arrowheads, and units. See AutoCad documentation for more information.
